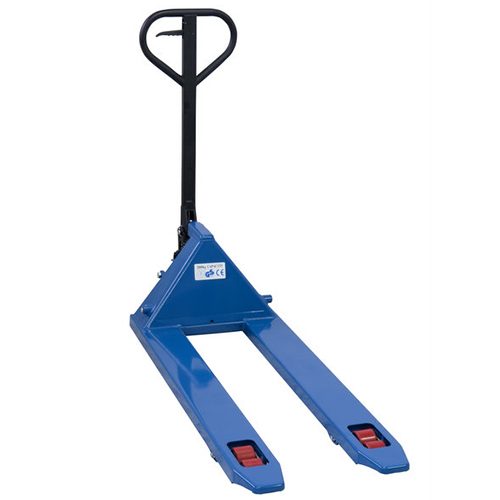

Hand Hydraulic Pallet Trucks: TP1000 – 1t
•Ideal for pallet handling.
•Reinforced structure.
•Nylon Wheels

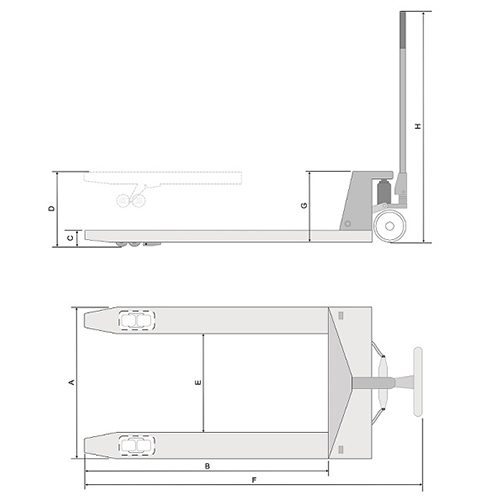

Technical information
| Capacity | 1 t | |
| A (mm) | 685 | |
| B (mm) | 1150 | |
| C (mm) | 125 | |
| D (mm) | 820 | |
| E (mm) | 365 | |
| F (mm) | 1500 | |
| G (mm) | 410 | |
| H (mm) | 1250 | |
| Weight | 102,5 kg |
Hand Hydraulic Pallet Trucks: TP2000 – 2t
•The use of nylon wheels for uneven floors is recommended. They are lighter, but less resistant.
•The use of PU wheels for smooth floors is recommended. They are heavier, but more resistant.
Technical information
| Capacity | 2 t | |
| A (mm) | 550 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 185 | |
| E (mm) | 160 | |
| F (mm) | 1510 | |
| G (mm) | 1180 | |
| H (mm) | – | |
| Weight | 55 kg |
Technical information
| Capacity | 2 t | |
| A (mm) | 685 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 190 | |
| E (mm) | 160 | |
| F (mm) | 1515 | |
| G (mm) | 1175 | |
| H (mm) | 1815 | |
| Weight | 54 kg |
Technical information
| Capacity | 2 t | |
| A (mm) | 685 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 190 | |
| E (mm) | 160 | |
| F (mm) | 1515 | |
| G (mm) | 1175 | |
| H (mm) | 1815 | |
| Weight | 55,5 kg |
Informações Técnicas
| Capacity | 2 t | |
| A (mm) | 685 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 190 | |
| E (mm) | 160 | |
| F (mm) | 1515 | |
| G (mm) | 1175 | |
| H (mm) | 1815 | |
| Weight | 54,5 kg |
Technical information
| Capacity | 3 t | |
| A (mm) | 550 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 190 | |
| E (mm) | 160 | |
| F (mm) | 1530 | |
| G (mm) | 1230 | |
| H (mm) | 1795 | |
| Weight | 59 kg |
Technical information
| Capacity | 3 t | |
| A (mm) | 685 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 190 | |
| E (mm) | 160 | |
| F (mm) | 1530 | |
| G (mm) | 1230 | |
| H (mm) | 1815 | |
| Weight | 61,5 kg |
Technical information
| Capacity | 3 t | |
| A (mm) | 685 | |
| B (mm) | 1150 | |
| C (mm) | 75 | |
| D (mm) | 190 | |
| E (mm) | 160 | |
| F (mm) | 1530 | |
| G (mm) | 1230 | |
| H (mm) | 1815 | |
| Weight | 64,5 kg |
Technical information
| Capacity | 685 | |
| A (mm) | 1150 | |
| B (mm) | 75 | |
| C (mm) | 190 | |
| D (mm) | 160 | |
| E (mm) | 1530 | |
| F (mm) | 1230 | |
| G (mm) | 1815 | |
| Weight | 63,5 kg |
